- Multiple ROI Definition per cassette or strip
- High contrast sharpness and sensitivity due to multi color illumination via LEDs

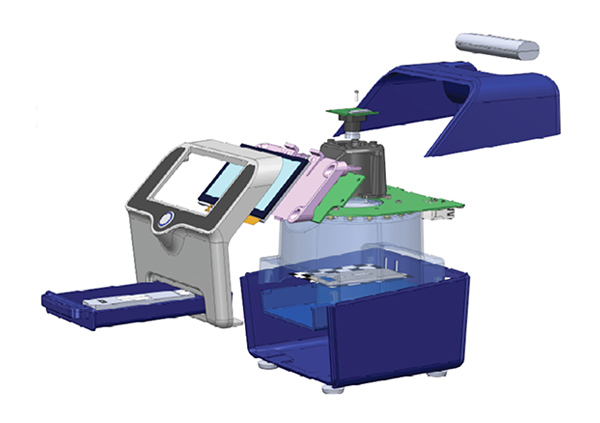

- Light-tight measuring chamber for high accuracy and precision
- High flexibility – drawer adapts to any test or strip
- Wide measurement area: 50 mm x 90 mm

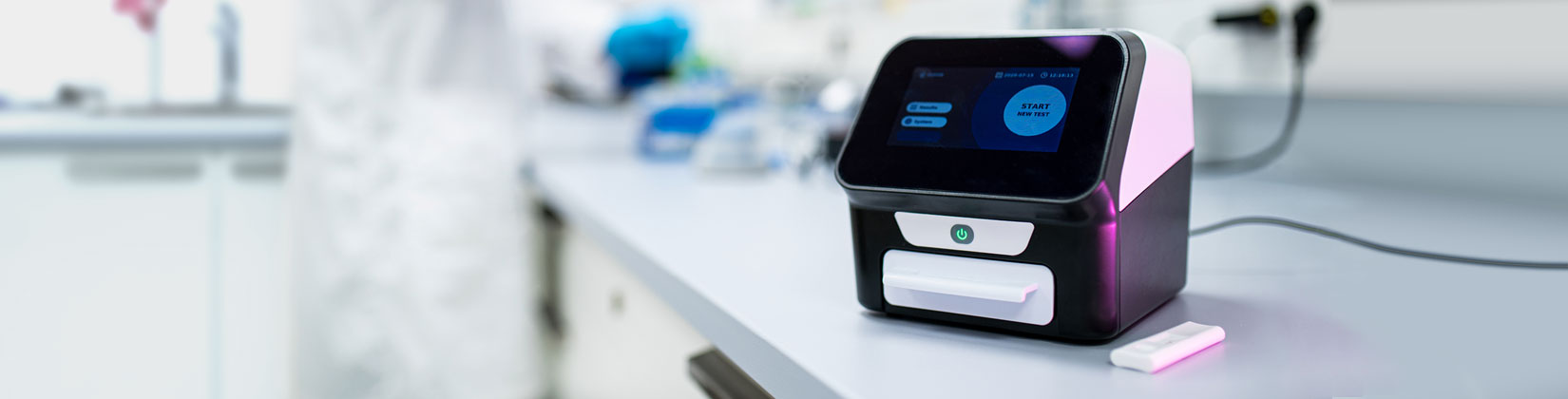

Customizable rapid test reader
Lumit Flex - "the Generalist"
High class performance & flexibility
Superior usability
- 4,3´´ touch display
- intuitive workflow with few user interactions
- fully barcode supported test and patient ID entry
- user centric design among DIN EN ISO 9241-210
- automated test recognition
Verified & controlled quality
- reproducible results on every device
- verified components
- regulatory requirements
- internal reference and calibration checks
- controlled manufacturing process
High connectivity
- read method file via 2D Barcode
- read patient ID via external 1D/2D Barcode
- plug and play printer and barcode reader
- export raw data files on USB stick
- connection to Lumi Connect SW
- Lumi Connect as local data management system or
- Lumi Connect as adapter to LIS,KIS, middleware or physician office management software
- HL7 and other communication protocols feasible
- BI-directionality connection
Detection Performance
- 5 Mpix. black/white camera (8 Bit)
- Multi color illumination to recognize color change tests
- Optimized Software for Lateral Flow tests
- Calibration and Self-adjustment among internal reference material
- High Performance CPU
- Low Inter device variation < 3% CV
- High reproducibility between different readings < 0.5% CV
| Size (L x W x H) | 150 x 150 x 150 mm (6 x 6 x 6 in) |
| Weight | Approximately 1.2 kg (2.6 lb) |
| User interface | Interactive 10.9 cm (4.3 in.) touchscreen • GUI with several languages • 2D barcode reading functionality |
| Connections | 3 x USB • Ethernet • WiFi module optional |
| Connectivity | External bar code reader • label printer support • data management software |
| Power supply | 100–240 VAC, 50/60 Hz • power bank support |
| Operating conditions | 15–35°C (59–95°F) • humidity 10–70% |
GUI: graphic user interface;
| Optical system | 5 Mpix camera (8Bit) • industrial standard |
| Signal detection | colorimetric test bands and dots (300µm) |
| Illumination | 3 color LEDs • optimized for homogeneous illumination of a wide range of test cassettes |
| Colorimetric detection | Colloidal gold • colored latex beads • carbon particles • colored cellulose beads etc. |
| Surveillance | Supervision of optical system among multiple calibration standards (inside) |
LED: light-emitting diode.
| Test strip dimensions | Flexible adaptation possible: Dipstick: width 4–6 mm; length 100 mm Cartridge: up to 120 x 50 x 15 mm (L x W x H) |
| Number of test strips | up to 5 (dipstick, width 5 mm) |
| Number of test lines per strip | Up to 19 test/control lines per strip |
| Memory capacity | Up to 100 test methods and up to 1000 test results |
| Measurement time | <20 seconds, one strip, 2 lines |
| Result interpretation | Qualitative, semi-quantitative and quantitative detection with several algorithms available |
| Reliability | >99,7 % |
| Reproducibility | Intra-device CV: < 0.5%; Inter-device CV < 3% |
CV: coefficient of variation
